Densified Laminated Wood Boards & Parts





Base Material : Wood Veneer

Matrix : Phenolic, Epoxy
Products : Wood Laminates :
Densified laminated Wood Boards - DLW
Resin impregnated densified laminated wood - RIDL
DLW + Epoxy glass high strength boards - DLWG

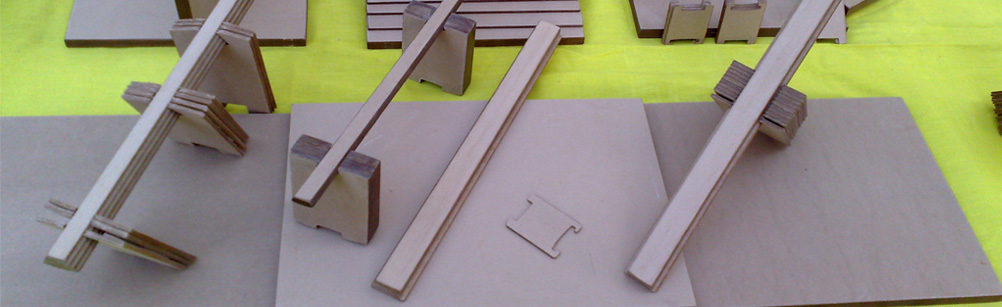

Machines Parts :
Coil Supporting platforms, rings and segments.
Without joint upto 1950 mm outer dia x 150 mm thick
With joints in 180� upto 3300 mm outer dia x 150 mm thick
With epoxy glass matrerial on top and bottom or in between layers
Core packings, Step packings.
Core Clamping beams.
Rods and profiles as core packing.
Threaded rods, studs, square nuts, conicalnuts M6 to M24 and to customer sizes.
We offerfasteners in BSW and UNC thread specifications.
Parts are made on CNC machines for accurate dimensions as per customer drawings and specifications.
Grades : DLW- C2R, C3R, C4R, P2R, P3R, P4R, T2R, T3R.
RIDL - RIDL - P, RIDL - C Glass Reinforced - C2RG, C3RG.
D - Densified, L - Laminated, W - Wood, C - Cross, P - Parallel, T - Tangential R - Beech Wood, 2 - Low Density, 3 - Medium Density, 4 - High Density, RI - Resin Impregnated, G - Giass Reinforcement. All grades as per IEC 61061 and Customers specification.
Sheet Size :
Thickness (mm) 6 to 150
Rectangular Boards LX W (mm) 1220 x 2440
1525 x 3050
1860 x 3660
Square Boards LX W (mm) 1220 x 1220
1525 x 1525
1830 x 1830
Long Beam LX W (mm) 600 x 3750
Cut sizes / parts to customer requirements.

Note : Other grades, sizes, parts as per customer requirements.
